Central Systems- Ultra PC % Cabinet Mount Flowmeter Package G
Ultra PC % Cabinet Mount Flowmeter, Mounting Hardware, Check Valve Risers, Bag Tee, Scavenging Circuit II (standard)[1,2,4,6]
$5,406.00
Central Systems- Ultra PC % Cabinet Mount Flowmeter Package H
Ultra PC % Cabinet Mount Flowmeter, Mounting Hardware, Check Valve Risers, RFS Remote Flow System A, Scavenging Circuit II (for RFS System A)[1,3,5,6]
$5,838.00
Central Systems- Ultra PC % Cabinet Mount Flowmeter Pkg. H CHAIR
Ultra PC % Cabinet Mount Flowmeter, Mounting Hardware, RFS Remote Flow System A, O2 and N2 O Check Valve Risers, 25’ of Vacuum Hose, 5’ of Mixed Gas Hose, One 6’ N2 O Hose, One 6’ O2 Hose, and Scavenging Circuit II (for RFS System A) [1,3,5,6]
$6,132.00
Universal Cabinet Slide, Analog Bag Tee
(slide mounts to left, right, or under cabinet)
$555.00
Universal Cabinet Slide, Analog RFS System
(slide mounts to left, right, or under cabinet)
$555.00
O2 Check Valve Riser
DISS (for operatory); includes 28085
$150.00
N2 O Check Valve Riser
DISS (for operatory); includes 28086
$150.00
O2 DISS x DISS Demand Check Valve Assembly
$75.00
N2O DISS x DISS Demand Check Valve Assembly
$75.00
Newport Flowmeter System
4-Cylinder Enclosed Portable Scavenging Circuit II [1,2]
$8,356.00
Details

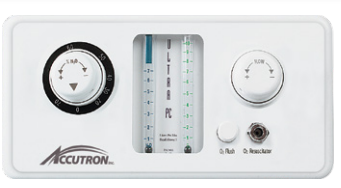

Ultra PC % Cabinet Mount Flowmeter
• Single-knob total flow control. • Nitrous oxide ratio control with 70% maximum. • Oxygen fail-safe and oxygen flush. • Oxygen resuscitation connector. • Emergency air valve. • Directional check valve. • Continuous oxygen and nitrous oxide flow tubes
Spe4cifications
• Dimensions Flushmount Control Module: 7.5 in x 7 in x 8.75 in (19.1 cm x 17.8 cm x 22.2 cm) • Weight: 6.3 lbs • Mixed Gas Outlet Diameter: .875 in Nominal (22mm) • Oxygen Inlet: Male DISS (CGA 1240) • Nitrous Oxide Inlet: Male DISS (CGA 1040) • Nitrous Oxide Mixed Ratio Range: 0 to 70%
• Oxygen Flow Range: 1.0 to 9.9 LPM • Nitrous Oxide Flow Range: 0 to 6.9 LPM • Inlet Pressure (each gas): 50 to 55 psi • Resuscitator Connector: Quick Connect (.25 in Imperial) • Resuscitator Connector Flow: 100 LPM Oxygen • Power Requirements: 100-240 V AC, 50-60 Hz, 30 Watts
Newport Flowmeter System
The Newport™ Flowmeter System has all of the operating features of the Ultra PC % Flowmeter, plus its enclosed 4-cylinder design makes it a user-friendly portable that can easily be moved from operatory to operatory. The unit’s height allows it to be stored under counter space that is open below. If not stored, its flat surface can function as additional counter space
Dimensions H x D x W: 31.75 in x 24 in x 19.25 in (80.6 cm x 61 cm x 48.9 cm)
