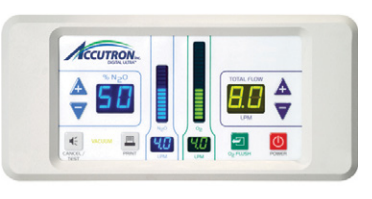

Digital Ultra Flushmount Flowmeter and Accessories
In stock
SKU
56800-1
Products
Product Name
Price
Qty
Digital Ultra Flushmount Package H
Digital Ultra Flushmount Flowmeter, Mounting Hardware, Check Valve Risers, RFS Remote Flow System D (with O2<br />port), RFS Flush Panel Mount Faceplate, Scavenging Circuit II (for RFS-D)[1,3,7,8]
$6,576.00
Digital Ultra Flushmount Package H CHAIR
Digital Ultra Flushmount Flowmeter, Mounting Hardware, RFS Remote Flow System A, Oxygen Outlet, O2 and N2 O Check Valve Risers, 25 ft of Vacuum Hose, 25 ft of Mixed Gas Hose, One 6 ft N2 O Hose, Two 6 ft O2 Hoses, and Scavenging Circuit II (for RFS-A) [1,4,7,8,9]
$6,867.00
Digital Ultra Flushmount Package G
Digital Ultra Flushmount Flowmeter, Mounting Hardware, Check Valve Risers, Bag Tee, Scavenging Circuit II (standard) [1,2,6,8]
$6,275.00
Digital Ultra Flushmount Package I
Digital Ultra Flushmount Flowmeter, Mounting Hardware, Check Valve Risers, Accu-Vac Vacuum Controller, Accu-Vac Vacuum Controller Flush Panel Mount Faceplate, Scavenging Circuit II (for Accu-Vac Vacuum Controller)[1,5,7,8]
$6,967.00
O2 Check Valve Riser
DISS (for operatory); includes 28085
$150.00
N2 O Check Valve Riser
DISS (for operatory); includes 28086
$150.00
Universal Light Pole Mount Kit for RFS - D
$188.00
Bracket for Digital Ultra Flushmount Flowmeter
(use for mounting flowmeter in wall)
$137.00
Oxygen Outlet
t (for use with Digital Ultra™ Flushmount, RFS System A & RFS Chairmount Kits
$279.00
Main Module Mounting Bracket
$73.00
O2 DISS x DISS Demand Check Valve Assembly
$75.00
N2O DISS x DISS Demand Check Valve Assembly
$75.00
Universal Cabinet Slide, Accu-Vac Vacuum Controller
(slide mounts to left, right, or under cabinet)
$544.00
Universal Cabinet Slide, Digital RFS Remote Flow System
(slide mounts to left, right, or under cabinet)
$544.00
Universal Cabinet Slide, Digital Bag Tee
(slide mounts to left, right, or under cabinet)
$544.00
Surface Mount for Digital Ultra Flushmount
(flowmeter not included)
$328.00
Remote Control for Digital Ultra Flowmeter
$502.00
Printer for Digital Ultra Flowmeter
$671.00
Details
• Automatic compensation to easily adjust total flow or gas ratio
while the other stays constant.
• Both digital and electronic flowtube displays for ease of use.
• Maximum nitrous oxide ratio at 70% for patient safety.
• Audible and visual alarms to notify of low oxygen.
• Oxygen fail-safe and flush for additional safety.
• Emergency oxygen resuscitation connector.
• Sealed flush surface makes it easy to disinfect or barrier-protect.
• Multiple mounting options available.
Specifications
Dimensions Flushmount Control Module: 9.25 in x 4 in x 1.5 in
(23.5 cm x 10.2 cm x 3.8 cm)
• Dimensions Remote Main Module: 8 in x 4 in x 7.5 in
(20.3 cm x 10.2 cm x 19.1 cm)
• Mounted Dimensions (W x H x D): 9.5 in x 4.25 in x .25 in
(24.1 cm x 10.8 cm x .64 cm)
• Weight Flushmount Control Module: 1.3 lbs (0.6 kg)
• Weight Remote Main Module: 6.1 lbs (2.8 kg)
• Mixed Gas Outlet Diameter: .875 in Nominal (22mm)
• Oxygen Inlet: Male DISS (CGA 1240)
• Nitrous Oxide Inlet: Male DISS (CGA 1040)
Nitrous Oxide Mixed Ratio Range: 0-70%
• Oxygen Flow Range: 1.0 to 9.9 LPM
• Nitrous Oxide Flow Range: 0 to 6.9 LPM
• Inlet Pressure (each gas): 50 to 55 psi
• Resuscitator Connector: Quick Connect (.25 in Imperial)
at Remote Outlet
• Resuscitator Connector Flow: 100 LPM Oxygen
• Power Requirements: 100-240 V AC, 50-60 Hz, 30 Watts
Crosstex
More Information
| Manufacturer | Crosstex |
|---|
