Digital Ultra Flowmeter and Newport Digital Flowmeter System

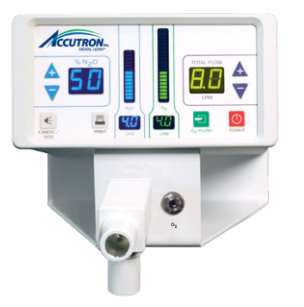

Digital Ultra Flowmeter

• Automatic compensation to easily adjust total flow or gas ratio
while the other stays constant.
• Both digital and electronic flowtube displays for ease of use.
• Maximum nitrous oxide ratio at 70% for patient safety.
• Audible and visual alarms to notify of low oxygen.
• Oxygen fail-safe and flush for additional safety.
• Emergency oxygen resuscitation connector.
• Sealed flush surface makes it easy to disinfect or barrierprotect.

Specifications

• Dimensions Flushmount Control Module: 7.5 in x 7 in x 8.75 in
(19.1 cm x 17.8 cm x 22.2 cm)
• Weight: 6.3 lbs
• Mixed Gas Outlet Diameter: .875 in Nominal (22mm)
• Oxygen Inlet: Male DISS (CGA 1240)
• Nitrous Oxide Inlet: Male DISS (CGA 1040)
• Nitrous Oxide Mixed Ratio Range: 0 to 70%

• Oxygen Flow Range: 1.0 to 9.9 LPM
• Nitrous Oxide Flow Range: 0 to 6.9 LPM
• Inlet Pressure (each gas): 50 to 55 psi
• Resuscitator Connector: Quick Connect (.25 in Imperial)
• Resuscitator Connector Flow: 100 LPM Oxygen
• Power Requirements: 100-240 V AC, 50-60 Hz, 30 Watts

Newport Digital Flowmeter System

The Newport™ Digital Flowmeter System has all of the operating
features of the Digital Ultra™ Flowmeter, plus its enclosed
4-cylinder design makes it a user-friendly portable that can easily
be moved from operatory to operatory. The unit’s height allows it
to be stored under counter space that is open below. If not stored,
its flat surface can function as additional counter space.

Dimensions H x D x W: 31.75 in x 24 in x 19.25 in
(80.6 cm x 61 cm x 48.9 cm)
