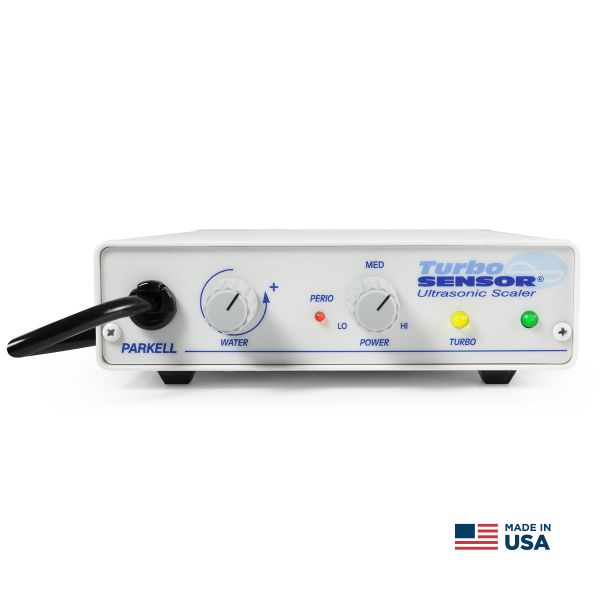

TurboSensor Ultrasonic Scaler

• Versatile and dependable.
• Clearly marked intuitive controls.
• Automatically adjusts frequency to power any 25KHz or 30KHz Parkell insert.^*
• Autoclavable handpiece sheaths improve infection control.
• On-demand foot-controlled Turbo Power Boost for heavy calculus.
• Broad range of power easily accommodates both the sensitive patient with light deposit to the patient who hasn’t had a professional scaling in years, as well as everyone in between.
• Expanded low-power “Perio” mode.

• Size of Unit: 1½”H x 5½”W x 7½”D
• Weight of Unit: 2.70 lbs (1.22 kg / 43.2 oz)
• Weight of Transformer: 3.85 lbs (1.75 kg / 61.6 oz)
• Length of Handpiece Cable: 7’ (215cm)
• Length of Foot Pedal Cable: 7’ (215cm)
• Length of Water Hose: 7’6” (230cm)
• Length of Power Cord: 110V: 12’6” (380cm); 220/230V: 7’6” (230cm)
• Total Length of Transformer Cable from Wall Outlet to Unit: 12’6” (380cm)
• Power: 120VAC 50/60 Hz (D560-110), 230VAC 50/60 Hz (D560-230)
• Protection Against Electric Shock: Class 1, Type B applied part
• Protection Against Ingress of Liquids: Foot Pedal & Scaler: IPX1 (drip proof); Power Supply: IPX0 (Ordinary)
• Mode of Operation of Equipment: Intermittent – 10 minutes on, 5 minutes off
• Operating Conditions: 15–30°C, 20–70% RH (non-condensing)
• Transport and Storage Conditions: -17º– 40°C, 20–70% RH (non-condensing)
• Certifications: All electrical devices have been certified to: IEC 60601-1, IEC 60601-1-2 and CAN/CSA C22.2 and are TUV listed
